X2010 to X2011 – the Evolution

The Gran Turismo 5 “Racing Car Pack” and the “Complete Pack” DLC, available from October 18th of this year also features the Red Bull X2011 Prototype.

All racing machines are subject to many small refinements and changes year after year. The X2010 is no exception, and through the hands of Red Bull Racing’s Adrian Newey and Gran Turismo, it has evolved into the X2011.

Here we will introduce the actual advancements that have been made:


1. Slimmed down mono-canopy for reduced frontal projected surface area

The engine induction box and the shock absorbent material supporting the driver helmet were optimised, to slim down the glass canopy characteristic to the X2010. As a result the frontal projected surface area of the car has been reduced.

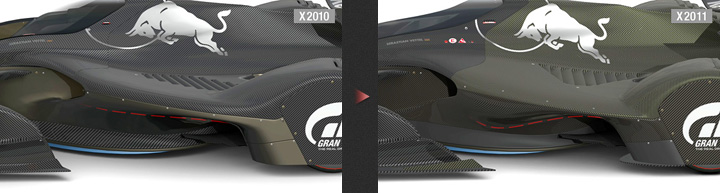

2. Optimisation of the side pontoons

The shape of the side pontoons containing the radiator as seen from its sides, were changed to become a narrow– bulge– narrow cross section, so that the air flows neatly towards the rear (mainly to the rear diffuser).

As compared to the X2010, the upper and lower surface (seen from the side) of the side pontoon is now more teardrop in shape, and allows air to flow efficiently towards the rear. Though not apparent from the outside, the cross sectional area of the air duct leading from the exhaust fan to the skirt at the rear end was also made slightly larger to improve the efficiency of the fan.

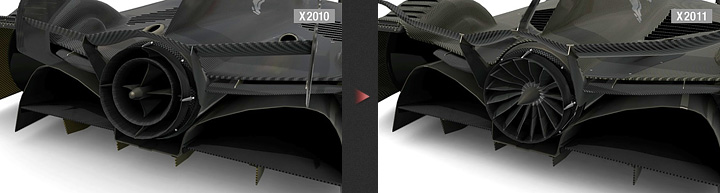

3. Exhaust fan mechanism changed to a rotating blade - static blade combination

The fan used to draw out the air from the underfloor was improved. The X2010 utilised a simple fan using only rotating blades, but in the X2011 the fan now takes on a two layer structure using static blades added behind the rotating blades to improve efficiency.

Due to the improved efficiency it became possible to reduce the speed of the exhaust fan, resulting in reduced loss in drive power for the engine. This has improved engine output by approximately 5%.

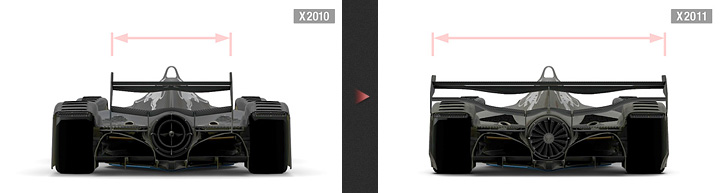

4. Rear wing width increased to the full width of the body

The width of the rear wing on the X2010 was limited to be within the width of the rear wheels, but this has now been widened to the full width of the body. This allows it to more effectively rectify the air flowing over the rear wheel arch, reducing both drag and lift.

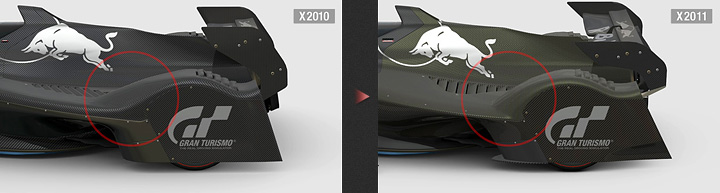

5. Optimisation of the rear bumper

Another characteristic shape of the X2010, the rear wheelarches, were changed to be more tear-drop in shape (mainly the upper surface). The lifted rear end of the arches were also made slightly longer.

This is to reduce the drag caused by the air wrapping around at the rear end of the car after passing though the rear wheelarch.

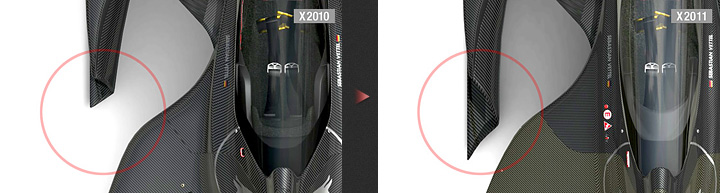

6. Extension of the rectifying fins at the rear end of the front wheelarches, towards the rear

The rectifying fins at the rear end of the front wheelarches were extended so that air flowing on the outside of the front wheelarches will flow more smoothly towards the side pontoons.

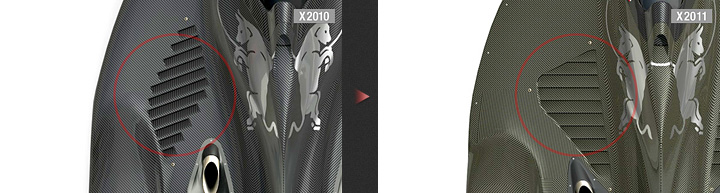

7. Changed the shape of the exhaust louvre on top of the pontoons

The shape of the exhaust louvres on top of the pontoons were revised to more efficiently draw out air in the side pontoons.


8. Exhaust outlet positioning

The position and direction of the exhaust outlet on top of the side pontoons were optimised to match the flow of air above the pontoons.


The Red Bull X2011 prototype has stepped even closer to perfection as the ultimate racing machine. Drive for yourself and experience the evolution.
